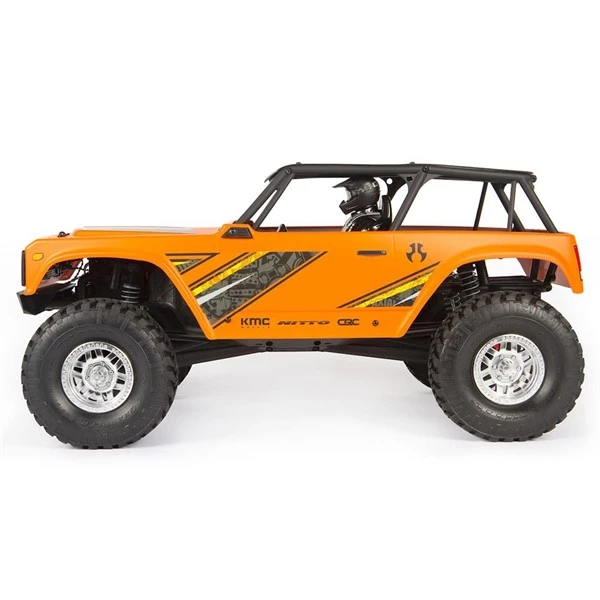

Axial – Wraith 1.9 1/10 RTR Scale Electric Rock Crawler (Orange) W/2.4GHz Radio

The Axial Wraith 1.9 RTR 1/10 Scale Rock Crawler is a fresh take on a classic platform that delivers what scalers crave – the ability to tackle technical terrain combined with the scale details needed to create an incredibly realistic looking rig.

Refining the proven 2.2 Wraith chassis design, Axial improved ground clearance by reducing the size of its skid plate and lower rails. Boatside sliders on the skid plate improve handling by helping the vehicle slip through and past obstacles. Another huge benefit to the Wraith 1.9 is that the truck comes out of the box with a forward battery tray configuration! This helps optimize weight distribution and lower the CG for improved performance. Finally, the servo has been moved off the axle and into the chassis where it belongs, with a proper CMS/panhard system that gives the truck improved scale looks, without the negative side effects that can be created by home brew systems.

At the front end of the pinched and boat tailed polycarbonate body you'll find a molded plastic grille, radiator detail, and two large, LED-equipped headlights and a functional opening hood. Raise the hood to discover a replica V8 engine receiver box cover protecting the Spektrum SRX200 receiver from water, dust, and debris.

The Wraith 1.9 truck's drivetrain uses a powerful brushed 540 motor to turn its proven front and rear, single piece AR44 axles. The pinion gear is 6mm above center, raising the ground clearance and improving driveshaft angles. Axial boosts the overall strength with metal gear construction; large, flex-reducing load bearings; increased gear surface contact; and a gear ratio that's optimized to reduce torque twist.

Adjustable oil-filled, coil over shocks allow you to tune dampening for the best handling on any track. Molded from durable S30 compound, the officially licensed Nitto Grappler tires have a large block tread that gets excellent bite on a wide range of surfaces.

The Axial Wraith 1.9 RTR comes factory-assembled and requires only a battery pack with IC3/EC3 connector, compatible battery charger, and four AAs for the included Spektrum 2.4GHz transmitter. It's easy enough for new RC hobbyists, with the design sophistication to take experienced drivers on incredible adventures far beyond the end of the road.

Axial® 1/10 Wraith™ 1.9 4WD Brushed RTR

Features:
Strong tube chassis with forward-mounted battery position
Boatsides/skid plate for extra clearance
Chassis-mounted servo for a realistic look
Easy access to electronics, and adjustable battery tray
New body design with LED lights, and grille, radiator, fender, and V8 engine details
Spektrum™ Transmitter and Receiver
Licensed 1.9 Nitto Trail Grappler M/T tires on KMC XD229 Machete crawl wheels
Compact AX10™ transmission
AR44™ hi-pinion axles for added ground clearance
WB8 HD Wildboar™ driveshafts
Dual slipper clutch with 32-pitch gearing
Specifications:

Type: Crawler
Scale: 1/10
Length: 17.8" (451.6mm)
Width: 8.8" (223.3mm)
Height: 8.8" (223.3mm)
Ground Clearance: 2.73" (69.4mm)
Wheelbase: 12.13" (308mm)
Weight: 4.65lb (2.1kg)
Chassis: Full tube frame constructed of high-strength impact resistant composite plastic, new chassis design moves battery tray to front for easier access and better weight distribution, new lower rails and skid plates are narrower for added clearance
Suspension: Multi link solid axle 4-link optimized to reduce axle steer and torque twist
Drivetrain: 4WD Shaft Drive
Tire Type: Licensed Nitto Grappler, aggressive large block tread design, foam inserts, Mounting Bead Diameter 1.9" (48.2mm), Outer Diameter 4.7" (119.4mm)
Motor or Engine: 540 size motor, 35T brush equipped, integrated cooling fan
Speed Control: Dynamite AE-5L 3S capable Forward/Reverse with drag brake, switchable between LiPo & NiMH batteries with a jumper, LED light controller with headlight/ taillight outputs
Radio: Spektrum FHSS 2.4GHz STX2 2-ch with 3-position throttle limiter, steering & throttle rate and trim adjustments, high torque (151 oz-in) water resistant, dual ball bearing steering servo
Servos: Tactic TSX45 high-torque metal gear dual ball bearing steering servo
Batteries: One 2-3S LiPo battery w/IC3 connector, or one 5-9 cell NiMH battery w/IC3 connector required
Charger: Compatible with selected battery
Gear Pitch: 32-Pitch
Wheel Size: 2.12" (53.9mm) Diameter, 1.2" (26mm) Width, 12mm Hex
Kit/RTR: RTR
Shock Type: Clear coated polished aluminum body oil-filled King shocks with precision machined pistons, pre-load tuning and ride height adjustable
Body: Molded polycarbonate with plastic grille and molded plastic inner fender wells
Ball Bearings: Full set included
Assembly Time: Less than 1 Hour
Includes:
(1) Axial Wraith 1.9 1/10 4WD RTR with:
(1) Spektrum™ SRX200 Receiver (installed)
(1) Tactic® TSX45 Metal Gear Servo (installed)
(1) Axial® 35T Electric Motor (installed)
(1) Dynamite® Electronic Speed Control with Drag Brake (installed)
(1) Spektrum™ STX2 Transmitter
(1) Product Manual
Needed To Complete:

2-3 Cell LiPo or 5-9 Cell NiMH/NiCd battery with IC3/EC3 connector
Compatible battery charger
(4) AA Alkaline batteries
