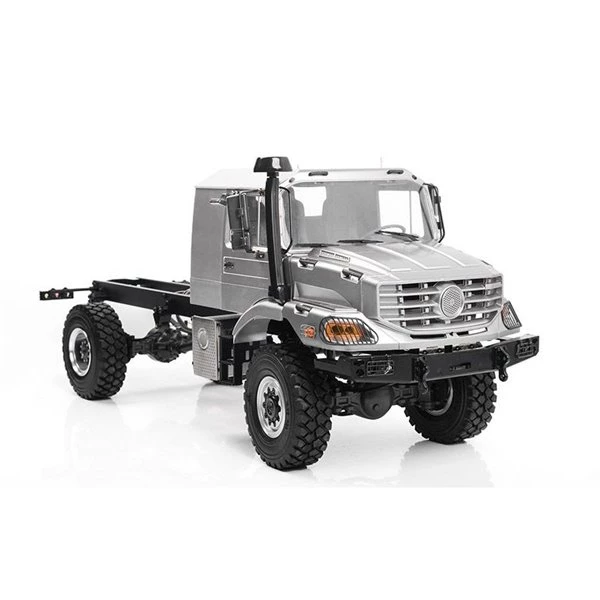

RC4WD – 1/14 Overland 4×4 ARTR RC Truck

Specifications:
Hard Plastic European Style Front Cab
Full Metal 2 Speed Transmission (Planetary Gears)
Super Scale Leaf Spring Suspension Setup
Scale Rims (Billet Aluminum)
Remote Lockable Front and Rear Axles (Locking Differential)
Full Metal Front and Rear Axle Housing
Steel Scale Drive Shaft
Realistic Front Cab Latch
Rear Light Guards
Scale Light Buckets (Fits 3-5mm LED)
Recommended Payload: 10kg /22lbs
Painted Body
Scale Wheels and Tires
Length: 23.8in / 606mm
Width: 9.06in / 230mm
Height: 10.7in / 273mm
Weight: 3.3kg / 7.2lbs
Axle Gear Ratio: 2.6 : 1
Maximum Load: 10kg / 22lbs
Load Total Mass: 17kg / 37lbs
First Gear 1:64, Second Gear 1:16 (Transmission)
This Product Is Professionally Pre-assembled
Manufactured by JDCustoms
30 Days Limited Warranty

What's Included:
1x 1/14 Overland 4×4 ARTR RC Truck

Required Parts:
Requires a 4 channel radio (Z-R0006)
Requires a brushed motor & ESC
Requires 2-3S Lipo battery or 6-8 cell NIMH battery (7.2 – 11.1v)
Requires 1x Steering Servo
Requires 1x Locker/Shift Servo

Instruction Manuals:
Click here to download.

Notes:
While some components may come assembled, it may be in your best interests to check the products to ensure all hardwares are tight. In some cases you may want to apply threadlock to some of the hardwares that were already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Use threadlock sparingly.
Do not over tighten screws, otherwise, you may strip the thread.
This product is for experienced R/C users. Not recommended if you just started with R/C.
This product does not include shocks.
