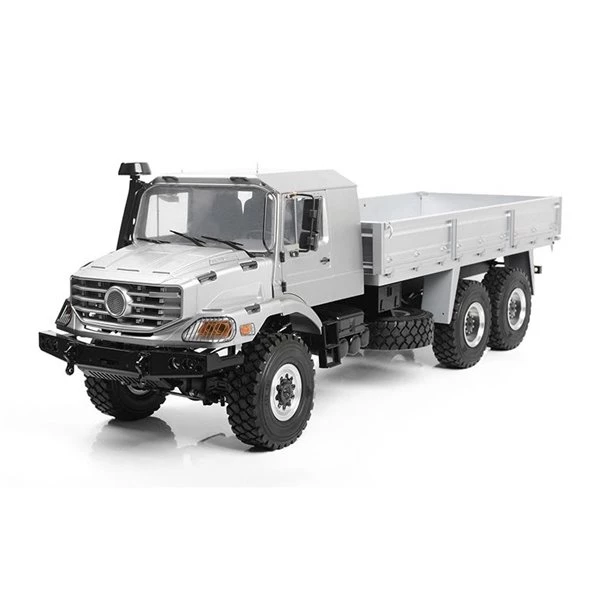

RC4WD – 1/14 Overland 6×6 RTR RC Truck W/ Utility Bed

Specifications:
Hard Plastic European Style Front Cab
Full Metal 2 Speed Transmission (Planetary Gears)
Transfer Case (Billet Aluminum)
Scale Fuel Tank (Billet Aluminum)
Super Scaled Leaf Spring Suspension Setup
Scale Rims (Billet Aluminum)
Remote Lockable Front and Rear Axles (Locking Differential)
Full Metal Front and Rear Axle Housing
Steel Scale Drive Shaft
Realistic Front Cab Latch
Molded Fuel Tank
Rear Light Guards
Scale Light Buckets (Fits 3-5mm LED)
Recommended Payload: 10kg /22lbs
Painted Body
Scale Wheels and Tires
Brushed Motor
Length: 28.8in / 734mm
Width: 9.05in / 230mm
Height: 10.7in / 273mm
Weight: 6.8kg / 14.9lbs
Axle Gear Ratio: 2.6 : 1
Maximum Load: 10kg / 22lbs
Load Total Mass: 17kg / 37lbs
First Gear 1:64, Second Gear 1:16 (Transmission)
Basic 4 Channel 2.4Ghz Radio
This Product Is Professionally Pre-assembled
Manufactured by JDCustoms
30 Days Limited Warranty

What's Included:
1/14 Overland 6×6 RTR RC Truck w/ Utility Bed

Required Parts:
5200mAh 11.1V 3S 25C LiPo Battery Pack with XT60 Plug (Battery Size: 5.59 x 1.77 x 1.57in / 142 x 45 x 40mm )
6x AA Batteries for Radio (Z-S1718)

Instruction Manuals:
Click here to download.

Notes:
Must turn on the transmitter before starting the ESC.
ESC Supports XT60 Connector
The ESC does not have lipo cut off.
While some components may come assembled, it may be in your best interests to check the products to ensure all hardwares are tight. In some cases you may want to apply threadlock to some of the hardwares that were already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Use threadlock sparingly.
Do not over tighten screws, otherwise, you may strip the thread.
Do not use more than 3S battery. (11.1 volt(s))
This product is for experienced R/C users. Not recommended if you just started with R/C.
Only the right side of the truck has a blind mirror with downward view.
