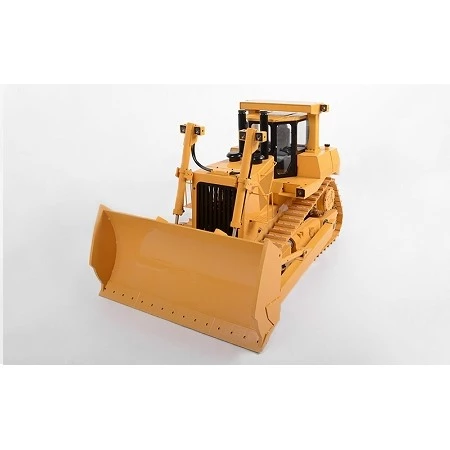

RC4WD – 1/14 Scale DXR2 Hydraulic Earth Dozer

THIS ITEM WILL REQUIRED EXTRA SHIPPING FEES

Payment Information: Due to the value of this product, the only form of payment that will be accepted is Bank Transfer. Please do not choose Pay Pal or Credit Card when checking out as we will cancel the order. Feel free to email us at [email protected] if you have any questions.

The Earth Dozer DXR2 is an amazing marvel in engineering and function. It offers remarkable adjustments to the bucket to allow for those demanding jobs. In case you have some hard pack that needs work, the rear ripper will shred though anything in its path. This Dozer is ready to do work and comes fully assembled.

Specifications:
Alloy Zinc and Alloy Aluminum Casting (except Track and Hydraulic Pump)
Weld Steel Bucket
9 Channel 2.4GHZ Radio
Heavy Duty Hoses (OD 3.2mm Nylon, ID 2.2mm)
Main Heavy Duty Hoses (OD 4mm Nylon, ID 2.5mm)
Optimized Steel Hydraulic System
Reliable Hydraulic Valve and Adjustable Pump
Brushless Hydraulic System
Full Metal Scale
All Terrain Metal Crawler
540 Brushed Monster Torque Motor
Full Metal Transmission (1:256 Gear Ratio)
Run Time is: 38 Minutes (5300mAh Battery)
Chrome Steel Oil Pump (47.5mm x 35mm x 36mm)
Bucket Capacity: 494949 mm_
Maximum Bucket Force (Down): 76kg / 167pounds
Maximum Bucket Force (Up): 50kg / 110pounds
Maximum Bucket Force (Thrust): 50kg / 110pounds
Driving Speed: 408 Meter Per hour
Scale: 1:14
Length: 27in / 685mm
Width: 13.8in / 351mm
Height: 12.7in / 323mm
Bucket Height: 6.87in / 174.6mm
Maximum Bucket Up and Down Angle: 29 degrees
Maximum Bucket Tilt Angle (Left and Right): 9 degrees
Maximum Ripper Depth of the Ground: 1.97in / 50mm
Total Mass Load: 37kg / 82LBs
Operating Oil Pressure: 25Bar, 362.5psi
Dead Weight: 26kg / 57LBs
Manufactured by JDCustoms
30 Days Limited Warranty

What's Included:
1x 1/14 Scale DXR2 Hydraulic Earth Dozer

Required Parts:
3S Lipo Battery
8x AA Batteries for Radio (Z-S1718)
Gens ace 5000mAh 11.1V 50C 3S1P Short-Size Lipo Battery Pack with XT60 Plug

Replacement Parts:
Earth Digger 4200XL Brushed ESC (VVV-S0011)
DXR2 Dozer Tracks (VVV-S0166)
Optional Parts:

Semi Truck Sound Unit (VVV-S0074)
1/14 Scale DXR2 Hydraulic Earth Dozer Light System (VVV-S0173)
Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)
Universal Scale Functional Radiator for Hydraulic Equipment (VVV-S0246)
Before operation, please check here for preparation procedure. Click Here

Instruction Manuals:

For Detailed Setup. Click here.
Radio instruction Manual. Click Here.
Notes:

While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
ESC Supports Bullet Connector
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.

Warranty Information:
This product is made for heavy duty usage. Since there is no plastic parts, its designed to last. But hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We will have all spare parts available for sell. Pump, hoses are electronics system is not covered under warranty, but we do guarantee fully functional at arrival. Each unit is full tested twice before we ship.
Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.
