RC4WD – 1/14 Scale Earth Digger 360L Hydraulic Excavator (RTR)

THIS ITEM WILL REQUIRED EXTRA SHIPPING FEES

Payment Information: Due to the value of this product, the only form of payment that will be accepted is Bank Transfer. Please do not choose Pay Pal or Credit Card when checking out as we will cancel the order. Feel free to email us at [email protected] if you have any questions.

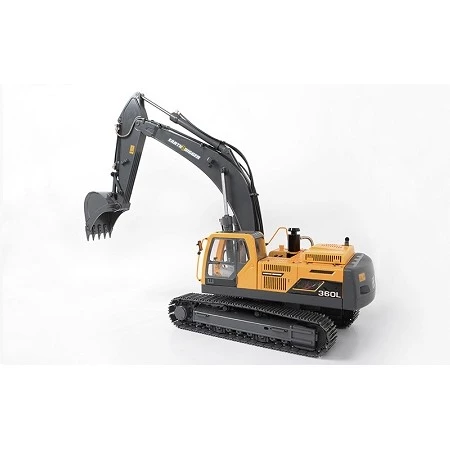

The 1/14 Scale Earth Digger 360L Hydraulic Excavator 360L is even more powerful than its predecessor! Built for those that want reliability, unmatched looks and brute strength for getting that project done. Created with CNC machined metal parts, it's fully assembled and ready to dig! Be ready for the massive power delivered through the high output brushless system. Let's get digging!

Notice: This product is not for first time RC hobbyists and should not be used by persons under the age of 16. This product is considered fairly difficult. Furthermore, we recommend that only experienced RC hobbyists purchase this product.

Specifications:
Alloy Zinc and Alloy Aluminum Casting (except Hydraulic Pump)
Custom 8 Channel 2.4Ghz Radio
Preinstalled High Intensity Light Sockets (Wire and bulbs are not included)
Optimized Steel Hydraulic System
Scale Driving Figure Ready (Not included)
Alloy Zinc Molded Tracks (50mm Width)
Efficient Undercarriage
Reliable Hydraulic Valve and Adjustable Pump
Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
Undercarriage May Rotate 360 Degrees (Endless)
Powder-coated in Yellow and Grey
Massive Brushless System (Including driving and turning)
Hydraulic System 60A Brushless ESC, Driving and Turning System 30A Brushless ESC
270Kv Brushless Monster Torque Motor, Shaft dia. 3.0mm
XT60 Power Plug Female
Run Time: 20 Minutes based on 4200mAh, 11.1V Battery
Steel Machined Oil Pump (60mm x 60mm x 93mm)
Digging Force: 15kg / 33lbs
Max Lifting Force: 70Kg / 154lbs
Driving Speed: 360 Meter per hour
Scale: 1:14
Length: 823mm / 32.4in
Width: 234mm / 9.21in
Height: 260mm / 10.2in
Operating Oil Pressure: 2.5Mpa
Inside Cab Length: 4.72in / 120mm
Inside Cab Width: 2.55in / 65mm
Inside Cab Height: 4.21in / 107mm
Deadweight: 26Kg / 57lbs
Manufactured by JDCustoms
30 Days Limited Warranty

What's Included:
1x 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Yellow)

Replacement Parts:
Earth Digger 4200XL High Voltage Brushless ESC (VVV-S0009)
Earth Digger 4200XL Excavator Brushless Motor (VVV-S0010)
4mm Heavy Duty Hydraulic Tubing (VVV-S0103)
Earth Digger 4200XL Excavator Aluminum Track (V2) (VVV-S0123)

Required Parts:
Gens ace 5000mAh 11.1V 50C 3S1P Short-Size Lipo Battery Pack with XT60 Plug
8x AA Batteries for Radio (Z-S1718)
Optional Parts:

Volvo Decal Sheet Set for 1/12 Earth Digger 360L (VVV-C0267)
1/14 Scale Earth Digger 360L Cab Window Protective Screens (VVV-S0186)
Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)
Earth Mover 870K Warning Light System (VVV-S0189)
Skeleton Excavator Bucket for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0217)
Quick Connect Ripper Tooth for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0222)
Narrow Digging Bucket for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0219)
Quick Connect for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0220)
Claw Attachment for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0223)
Wide Bucket for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0218)
Digging Bucket for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (VVV-S0221)
Universal Scale Functional Radiator for Hydraulic Equipment (VVV-S0246)
Breaker / Hammer Accessory for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Yellow) (VVV-S0245)
Breaker / Hammer Accessory for 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Blue) (VVV-S0244)

Notes:
Must turn on the transmitter before starting the ESC.
ESC Supports XT60 Connector
This unit doesn't have a low voltage cut off. You will want to purchase a LiPo Battery Low Voltage Alarm to protect your battery. This is a common item in RC and should be available at most major online hobby shops.
While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.

Instruction Manuals:
Click here to download.

Radio Manual:

Click here to download.

Warranty information
This product is made for heavy duty usage. Since there are no plastic parts, it's designed to last. however, hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We have all spare parts available for sale. Pump, hoses and electronics system is not covered under warranty, but we do guarantee full functionality at arrival. Each unit is full tested twice before we ship.
Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.
This Excavator is shipped without oil. You will have to fill the tank yourself (half tank), by using a funnel or tube (not included).
