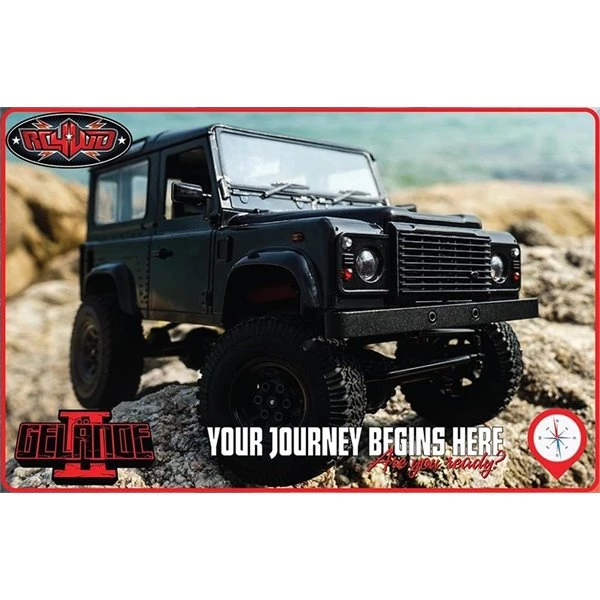

RC4WD – 1/18 Gelande II RTR W/D90 Body Set (Black)

Experience the versatility and advanced design of the 1/18 Gelande II for yourself. Packed full of capability, the Gelande II is ready for any challenging condition. Put your off-road driving to the test and see why the G2 is unmatched in its class!

The G2 is built with quality materials and craftsmanship. It can maneuver extreme descents and climbs with ease. The new 1/18 Mini Transmission provides power to the 1/18 Yota II Axles.

The core of the G2 is built for the true off-road enthusiast. From emergency and expedition vehicles, down and dirty off-road rigs and even daily drivers, the G2 can be customized to pull off any look you choose. The G2 delivers on performance and looks to match the drivers identity.

The G2 comes with double triangulated 4 Link Front and Rear Suspension. The servo is mounted on the chassis out of view for a more scale appearance.

Are you ready for your off-road experience?

Custom Designed For True To Scale Looks

Realistic Aluminum Ladder Frame Chassis

R5 1/18 Mini Transmission V2

1/18 Cast Front and Rear Axle Set

4 Link Front and 4 Link Rear Suspension

Dirt Grabber 1.0″ All Terrain Tires

Stamped Steel 1.0″ Stock Beadlock Wheels (Black)

9G Analog Metal Gear Micro Servo

The Ultimate Mini Scale Shocks (40mm)

All New R5 1/18 Mini Transmission V2

Total Gear Ratio: 5.5 : 1

Pinion Gear: 55P 10T

Gear Material: Hardened Brass and Steel

Case Material: Plastic Injection Molded

All New 1/18 Cast Yota II Axles

Ratio: 2.55 : 1

Width at Hex : 92mm

Case Material: Zinc Alloy

G2 Suspension

Double Triangulated 4 Link Front and Rear Suspension

Shock Absorbers

Ultimate 40mm Scale Shocks – Can not be Oil Filled

Wheels

Type: 1.0″ 6 Lug Beadlock Wheels

Hub: 7mm Hex

Width: 7mm

Back Spacing: 7mm

Bumpers

Machined Billet Aluminum, Light Weight

G2 Truck Dimensions

Wheelbase: 130.75mm (5.15″)

Width: 108.08mm (4.26″)

Height: 120.53mm (4.75″)

Ground Clearance: 30.74mm (1.21″)

Final Drive Ratio: 112 : 1

Weight: 1.87lbs / 0.85kg

SUSPENSION

The G2 Chassis features a simple front mounted electronics plate for easy mounting of the XR2 Micro ESC/Receiver combo.

The G2 includes a set of RC4WD Micro Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The G2 Chassis is a machined billet aluminum ladder frame with a 4 link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.0” Stock Beadlock Wheels. These feature a super tough black finish, aluminum internal locking ring and popular 6 lug design.

Every G2 needs a tough set or rock grabbing tires and the included Dirt Grabbers in our advanced X3 soft compound deliver the traction you need as well as perfect scale looks in just the right size.

https://www.rc4wd.co.uk/product/Z-RTR0038-34.jpg

DETAILS

The G2 features the D90 Scale Body Set. The D90 body has an awesome assortment of scale details including chrome decals for the mirrors, door handles, vents and detailed grille to match the 1:1 vehicle.

The unmistakable lines of a classic. The D90 Body Set is an exact replica of the fully scale vehicle, right down to the rivets! No other scale body comes this close to realism.

The D90 Body Set comes in durable hard plastic molded in a paintable black finish, perfect for custom paint.

The D90 Body Set features a full detailed interior including steering wheel, seats, gear shifter, handbrake and a detailed dashboard. It’s all here to bring your build to next level.

The crisp lines and subtle details are all captured. Detailed parts are included as well as clear lenses for all signal lights.

DRIVETRAIN

The 1/18 G2 includes a quality 2-in-1 Micro ESC + Receiver paired with the XR2 Micro Radio system and is ready for your next scale adventure!

The G2 includes the new R5 1/18 Mini Transmission V2. Packed with scale detail, the R5 features a high quality plastic exterior and heavy duty gears for durability.

The Driveshafts for the G2 feature bulletproof steel universals and a new high quality steel shaft for great driveline angles and durability on the trail.

The most scale accurate axles on the market, the RC4WD 1/18 Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, new lower mounting points and a compact offset pumpkin in the front.

It’s ALL in the box! Everything you need is provided to get you on the trails today!

Shown with all 4 Mini Gelande Option. Black Rock, Blackjack, D90 Black, and D90 Blue.

https://www.rc4wd.co.uk/product/Z-RTR0038-33.jpg

What’s Included:

1x RC4WD 1/18 Gelande II RTR w/D90 Body Set (Black)

Replacement Parts:

RC4WD 7.4V 850mAh 2S LiPo Battery (Z-E0080)

2-in-1 Micro ESC + Receiver for XR2 Micro Radio (Z-E0078)

9G Analog Metal Gear Micro Servo (Z-E0077)

Punisher Shafts 1/18 (42mm – 50mm / 1.57″ – 1.96″) 3mm Hole (Z-S1684)

Yota II 1/18 Cast Front and Rear Axle Set (Z-A0117)

The Ultimate Mini Scale Shocks (40mm) (Z-S1686)

R5 1/18 Mini Transmission V2 (Z-U0036)

Stamped Steel 1.0″ Stock Beadlock Wheels (Black) (Z-W0229)

Dirt Grabber 1.0″ All Terrain Tires (Z-T0142)

Optional Parts:

Rok Lox 1.0″ Micro Comp Tires (Z-T0028)

Rage 1.0″ Beadlock Wheels (Z-W0061)

RC4WD Mickey Thompson Baja Claw TTC 1.0″ Micro Crawler Tires (Z-T0067)

RC4WD Interco Super Swamper TSL/Bogger 1.0″ Micro Crawler Tires (Z-T0069)

Chubby Mini 3 TON Scale Jack Stands (Z-S0731)

Metal Front Lamp Guards for 1/18 Gelande D90 (VVV-C0268)

Metal Side Window Guards for 1/18 Gelande D90 (VVV-C0270)

Rear Ladder for 1/18 Gelande D90 (Black) (VVV-C0281)

Rear Ladder for 1/18 Gelande D90 (Red) (VVV-C0282)

Front Window Roll Cage for 1/18 Gelande D90 (Black) (VVV-C0273)

Front Window Roll Cage for 1/18 Gelande D90 (Red) (VVV-C0274)

Metal Front Side Hood Diamond Plates for 1/18 Gelande D90 (VVV-C0269)

Side Body Guards for 1/18 Gelande D90 (Black) (VVV-C0275)

Side Body Guards for 1/18 Gelande D90 (Red) (VVV-C0276)

Expanded Side Body Panels for 1/18 Gelande D90 (VVV-C0272)

Roof Rack for 1/18 Gelande D90 (Black) (VVV-C0277)

Roof Rack with Light Pods for 1/18 Gelande D90 (Red) (VVV-C0280)

Roof Rack for 1/18 Gelande D90 (Red) (VVV-C0278)

Roof Rack with Light Pods for 1/18 Gelande D90 (Black) (VVV-C0279)

Spare Tire Holder for 1/18 Gelande D90 (VVV-C0271)

RC4WD Raceline Monster 1.0″ Beadlock Wheels (Z-W0252)

Ballistic Fabrications Diff Cover for 1/18th Yota II (Fits Front or Rear Axle) (Z-S1813)

RC4WD ARB Diff Cover for 1/18 Yota II Axle (Red) (Z-S1822)

R5 1/18 Mini Transmission V2 (Z-U0036)

RC4WD Goodyear Wrangler MT/R 1.0″ Micro Scale Tires (Z-T0161)

Rock Crusher 1.0″ Micro Crawler Tires (Z-T0027)

Interior for 1/18 Mini D90 (Z-B0166)

RC4WD Milestar Patagonia M/T 1.0” Micro Crawler Tires (Z-T0164)

RC4WD D90 Body Set for 1/18 Gelande II (Blue) (Z-B0175)

Replacement Hardware:

Steel Socket Head Cap Screws M1.6 x 4mm (10) (Z-S1232)

Steel Socket Head Cap Screw M2 X 4mm (10) (Z-S0922)

Steel Socket Head Cap Screws M2 X 6mm (10) (Z-S0611)

Steel Socket Head Cap Screws M2 x 8mm (Z-S0750)

Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)

Steel Socket Head Cap Screws M2.5 X 8mm (10) (Z-S0829)

Steel Flat Head Cap Screw M2 X 4mm (10) (Z-S1516)

Steel Flat Head Cap Screw M2 X 6mm (10) (Z-S1518)

Nylock Nuts M2 (Black) (Z-S0906)

Other Body Types Available:

RC4WD 1/18 Gelande II RTR w/BlackJack Body Set (Z-RTR0036)

RC4WD 1/18 Gelande II RTR w/Black Rock Body Set (Z-RTR0037)

Optional Color:

RC4WD 1/18 Gelande II RTR w/D90 Body Set (Blue) (Z-RTR0039)

Items of Interest (not required for completion):

Hex Drivers (1.5mm, 2mm)

Long Nose Pliers

Associated Thread Locking Adhesive

4mm Nut Driver (OD less than 5.5mm)

Instant glue / Plastic Cement (preferably non whitening)

Cross Phillips Screwdrivers (small)

Grease and Lubrication (Z-S1199) (Z-S1197)

Double Sided Tape for ESC (Z-S0935) (Z-S0934)

Instruction Manual:

Click here to download

Videos:

Unboxing Video: Click here

Press Information:

Click here to download

Notes:

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
