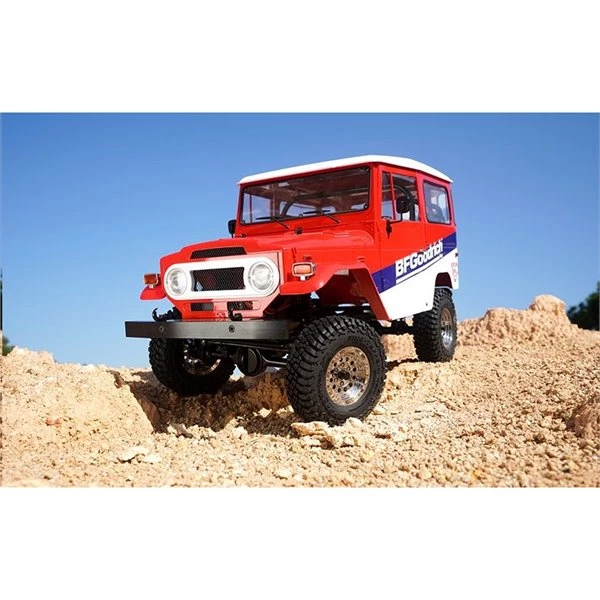

RC4WD – Gelande II RTR Truck Kit W/Cruiser Body Set (BFGoodrich 150th Anniversary Edition)

RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (BFGoodrich 150th Anniversary Edition)

Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the proven Yota II axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

Are you ready for your off-road experience?

Custom Designed for True to Scale Looks
Realistic Aluminum Ladder Frame Chassis
R3 Single Speed Transmission
Center Mounted Realistic 4X4 Transfer Case
Yota II Ultimate Scale Cast Axles
3 Link Front and 4 Link Rear Suspension
RC4WD Chrome 1.9" Beadlock Wheels
RC4WD BFGoodrich Mud Terrain T/A KM3 1.9 Tires
Chassis Mounted Steering Servo
Plastic Fuel Cell Receiver Box
Dual Spring Oil Filled Shock Absorbers

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears, 8 Bearings, Cast Casing

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratios: 1.78:1
Gears – Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.2mm

G2 Suspension
3 Link Suspension with Panhard Bar
Double Triangulated 4 Link Rear Suspension

Shock Absorbers
Dual Spring 80mm Shocks – Can be Oil Filled

Wheels
Type: RC4WD Chrome 1.9" Beadlock Wheels
Hub: 12mm Hex
Width: 26mm (1.02")
OD: 54mm (2.14")

Bumpers
Machined Billet Aluminum, Lightweight

G2 Truck Dimensions
Wheelbase: 10.8in / 275mm
Length: 18.3in / 465mm
Width: 8.2in / 210mm
Height: 10.7in / 274mm
Ground Clearance: 2.4in / 61mm
Final Drive Ratio: 31.9:1
Weight: 8.35Lbs / 3.79Kg

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The punisher shafts for the G2 feature bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

SUSPENSION

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box and an aluminum, frame mounted under cab electronics tray for multiple mounting options for your electronics. Also includes a sturdy battery tray with strap mounts.

The G2 includes a set of RC4WD Dual Spring Shocks. These shocks offer realistic looks and matching performance. They're machined from billet aluminum and are completely rebuildable.

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design with scale shock hoops, chassis servo mounts and hard body mounting points for maximum strength

The G2 includes a set of RC4WD Chrome 1.9" Beadlock Wheels. These are machined from billet aluminum with a smooth silver finish.

The RC4WD BFGoodrich Mud Terrain T/A KM3 1.9 Tires in X2 Compound deliver the traction as well as perfect scale looks in just the right size.

DETAILS

The G2 features the Cruiser Scale Body Set. The Cruiser Body has an awesome assortment of scale details including mirrors, door handles, vents and a grill to match the 1:1 real vehicle.

The Cruiser Body Set feature the unmistakable lines of a classic. It is an exact replica of the full scale vehicle, right down to the removable top! No other scale body comes this close to realism.

The limited edition red and white paint scheme commemorates BFGoodrich's 150th year anniversary along with custom factory-applied decals

Comprised of over 70 parts, the Cruiser Body Set features a full detailed interior, seats, gear shifter, handbrake and a detailed dashboard. It's all here to bring your build to next level.

The unmistakable front grille has been painted in a classic white and features a metal grille insert. All lights and marker lamps can be illuminated with an optional RC4WD LED light kit.

ELECTRONICS

The G2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!

The G2 is powered by the nearly indestructible RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!

The G2 features the popular RC4WD Outcry Brushed Speed Controller with built-in drag brake and a separate 6V 5amp Turbo BEC for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the G2 features the Twister. A high torque metal gear digital servo to handle all your steering duties.

Featuring a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and per-formance you need when the turning gets tough.

What's Included:
1x RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (BFGoodrich 150th Anniversary Edition)

Replacements Parts:
Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
Gelande 2 Rear 4 Link Mount (Z-S0795)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
Drag Link for Yota II (104.5mm / 4.11in) (Z-S0810)
73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
M3 Short Bent Plastic Rod End (20x) (Z-S0402)
M3 Mini Plastic Rod End (20x) (Z-S0398)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
R3 Single Speed Transmission Mounts (Z-S0802)
R3 Scale Single Speed Transmission (Z-U0028)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
Gelande 2 Chassis Set (Z-C0040)
Battery Plate for Gelande 2 (Z-S0792)
Servo Mounts for Gelande 2 Chassis (Z-S0791)
Fuel Cell Radio Box (Z-S0592)
Hammer Transfer Case (1.47/1) (Z-U0024)
Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
Metal Drive Coupling for Gelande 2 (Z-S0803)
Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
RC4WD ION Style 71 1.9" Beadlock Wheels (Z-W0303)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.9 Tires (Z-T0192)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
1mm Black Spacer with M3 Hole (10) (Z-S0809)
2mm Black Spacer with M3 Hole (10) (Z-S0600)
3mm Black Spacer with M3 Hole (10) (Z-S0806)
5mm Black Spacer with M3 Hole (10) (Z-S0821)
RC4WD Cruiser Main Interior (Z-B0063)
RC4WD Cruiser Dashboard Parts Tree (Z-B0067)
RC4WD Cruiser Seat Parts Tree (Z-B0069)
RC4WD Cruiser Accessories Parts Tree (Z-B0071)
RC4WD Cruiser Accessories 2 Parts Tree (Z-B0073)
RC4WD Cruiser Chrome Accessories Parts Tree (Z-B0075)
RC4WD Cruiser Clear Parts Tree (Z-B0077)
RC4WD Cruiser Main Window (Z-B0079)
RC4WD Cruiser Front Grille Insert (Z-B0081)
RC4WD Cruiser Front LED Holder (Z-B0083)
RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
RC4WD Cruiser Main Body (Z-B0061)
RC4WD Cruiser Roof (Z-B0065)
Cruiser Body Conversion Kit for D90 (Z-S1706)
RC4WD 12mm Axle Wheel Hexes (2 way) (Z-S0238)
540 Crawler Brushed Motor 45T (Z-E0004)
Outcry III Waterproof ESC (Z-E0113)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)

Optional Parts:
Ultra Scale Hardened Steel Driveshaft "Ver 2" (80mm – 110mm / 3.15" – 4.33") (VVV-S0120)
Rebuildable Super Punisher Shaft (100mm – 118mm / 3.94" – 4.65") 5mm Hole (Z-S1261)
RC4WD Fender Flare for Rear Cruiser Body (Z-S1539)
RC4WD Snorkel for Cruiser Body (Z-S1554)
Tube Roll Bar for RC4WD Gelande II Cruiser (VVV-C0216)
Tube Roll Bar with Fabric Shade for RC4WD Gelande II Cruiser (VVV-C0221)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (120mm/4.72") (Z-E0095)
Driver (Z-S0190)
Winch (Winch Options)
XVD For Yota II Front Axle (Z-S0823)
Scale Aisin/Yota Style Hubs (Z-S0196)
Trition Transfer Case (1:1 ratio) (Z-U0029)
Survivor Rear Bumper for Gelande (Z-S0698)
Yota II Scale Diff Cover (Z-S0907)
Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
Gelande II Steering Guard (Z-S0824)
Scale Steel Punisher Shaft V3 (90.5mm – 110.5mm / 3.56" – 4.35") 5mm Hole (Z-S0826)
Ultra Scale Hardened Steel Driveshaft (46mm – 50mm / 1.81" – 1.96") 5mm (VVV-S0006)
K44 Ultimate Scale Rear Axle (Z-A0049)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
Heavy Duty Metal Servo Arm 24t Hitec (Z-S0820)
Mud Flaps for Gelande 2 (Z-S0890)
Challenger 1.9 Scale Tires (Z-T0108)
1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
1.9" 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
Predator Track Front Axle Fitting Kit for Yota II (Z-S0918)
Tow Bar Mount for TF2 / G2 (Z-S1125)
RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
R3 Scale Single Speed Transmission (Z-U0028)
R3 Single Speed Transmission Mounts (Z-S0802)
Land Rover Mud Flaps for Gelande II D90/D110 (Z-S1888)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
Gelande 2 Mounting kit for Jack Stand (Z-S1324)
RC4WD 1/10 Super Charged Emblem Set (Z-S1138)
RC4WD 1/10 Turbo Diesel Emblem Set (Z-S1132)
LED Basic Lighting System For Cruiser Body Set (Z-E0071)
Rear Fender Flares for RC4WD Cruiser Body (VVV-C0136)
Metal Side Diamond (B) Plates for RC4WD Cruiser Body (Silver) (VVV-C0135)
Metal Side Diamond (A) Plates for RC4WD Cruiser Body (Silver) (VVV-C0134)
Side Metal Emblems for RC4WD Cruiser Body (Side B) (VVV-C0133)
Snorkel for RC4WD Cruiser Body (VVV-C0131)
Metal Side Diamond (B) Plates for RC4WD Cruiser Body (Black) (VVV-C0130)
RC4WD Tough Armor Metal Tube Cage for G2 Cruiser (Z-X0021)
Tough Armor Tube Roll Bar for G2 Cruiser (Z-X0023)
Hitch Mount with Bumper for RC4WD G2 Cruiser (Z-S1626)
Metal Tire Holder RC4WD G2 Cruiser/FJ40 (VVV-C0173)
Rear Bumper Assembly w/Pad for RC4WD G2 Cruiser/FJ40 (VVV-C0171)
Rear Bumper Step for RC4WD G2 Cruiser/FJ40 (VVV-C0178)
Rear Bumper for RC4WD G2 Cruiser/FJ40 (VVV-C0170)
Rear Bumper Assembly w/Pad and Step for RC4WD G2 Cruiser/FJ40 (VVV-C0172)
Rear Bumper Pads for RC4WD G2 Cruiser/FJ40 (VVV-C0167)
1.9 Landies Internal Beadlock Wheels (Z-W0075)
RC4WD Tough Armor Side Slider for G2 Cruiser (Z-S1543)
Scale Steel Punisher Shaft (77mm – 100mm / 3.03" – 3.94") (Z-S1054)
RC4WD Tough Armor Swing Away Tire Carrier w/Fuel holder for the G2 Cruiser (Z-X0025)
RC4WD Tough Armor Tube Sliders for G2 Cruiser (Z-S1625)
Cruiser Body Emblem Set (Z-S1714)
RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
Front Winch Bumper for G2 Cruiser (VVV-C0251)
RC4WD Tough Armor Side Sliders for G2 Cruiser (Z-S1726)
Rhino Front Bumper for RC4WD Gelande 2 Cruiser (Black) (VVV-C0324)
Rhino Bumper, Sliders and Bumper Extension Package for Gelande 2 Cruiser (Black) (VVV-C0327)
Tough Armor Metal Tube Cage with Soft Top for G2 Cruiser (Z-X0038)
Gelande II Leaf Spring Kit (Z-S1752)
Wood Roof Rack for RC4WD Cruiser Body (VVV-C0436)
Wood Roof Rack w/Lights for RC4WD Cruiser Body (VVV-C0437)
RC4WD Ballistic Fabrications Diff Cover for K44 Cast Axle (Z-S1841)
RC4WD Hawkeye 1.9'' Scale Tire (Z-T0162)
Truescale Series 1.7" Beadlock Wheels (Z-W0265)
OEM Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0258)
OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0260)
OEM Stamped Steel 1.55" Beadlock Wheels (Black) (Z-W0262)
OEM Stamped Steel 1.55" Beadlock Wheels (Chrome) (Z-W0264)
RC4WD Interco IROK ND 1.55" Scale Tires (Z-T0163)
RC4WD Mickey Thompson Narrow 2.2" Baja MTZ Scale Tires (Z-T0085)
JK 1.9" Scale Beadlock Wheels (Z-W0151)
RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
Front License Plate System for RC4WD G2 Cruiser (VVV-C0463)
Rear License Plate System for RC4WD G2 Cruiser (VVV-C0464)
Rear License Plate System for RC4WD G2 Cruiser (w/LED) (VVV-C0465)
Rear Mud Flaps for G2 Cruiser (VVV-C0466)
Optional Grille Set for Cruiser Body Set (w/LED) (VVV-C0468)
RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
Optional Grille Set for Cruiser Body Set (VVV-C0467)
RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
RC4WD Falken Wildpeak A/T3W 1.55 Scale Tires (Z-T0169)
Stamped Steel 1.7" Beadlock Wagon Wheels (Clear) (Z-W0272)
Over/Under Drive T-Case Lower 4 Link Mount w/ Battery Tray for Gelande II (Z-S1899)
Stamped Steel 1.7" Beadlock Wagon Wheels (Chrome) (Z-W0271)
Stamped Steel 1.7" Beadlock Wagon Wheels (White) (Z-W0269)
Classic Front Bumper for G2 Cruiser (VVV-C0600)
Classic Roof Rack Rails for G2 Cruiser (VVV-C0601)
Wiper Motor Cover for G2 Cruiser (VVV-C0602)
FJ40 Emblem for G2 Cruiser (VVV-C0603)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Black) (Z-W0281)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (White) (Z-W0284)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Chrome) (Z-W0285)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Clear) (Z-W0286)
Super Soft Flex Leaf Springs for Gelande II (4) (Z-S1897)
RC4WD Yota Narrow Offset 1.9" Beadlock Wheels (Z-W0283)
RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0288)
Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear) (Z-W0289)
RC4WD Fuel Zephyr Beadlock Wheels 1.9" (Z-W0294)
RC4WD Goodyear Wrangler Duratrac 1.55'' 4.19'' Scale Tires (Z-T0177)
RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
Rover Classic 1.9" Beadlock Wheels (VVV-C0695)
Rover Vogue 1.9" Beadlock Wheels (VVV-C0696)
RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9" Wheels (Z-W0293)
RC4WD Milestar Patagonia A/T 1.7" Tires (Z-T0181)
RC4WD Dirty Life RoadKill 1.7" Beadlock Wheels (Silver) (Z-W0298)
RC4WD Dirty Life RoadKill 1.7" Beadlock Wheels (Black) (Z-W0299)
Classic 10-Hole Chrome 1.9" Beadlock Wheels (Z-W0296)
RC4WD Interco Narrow TSL SS 1.55 Scale Tires (Z-T0182)
RC4WD Level 8 Bully Pro 6 1.9" Beadlock Wheels (Z-W0300)
RC4WD ION Style 71 1.9" Beadlock Wheels (Z-W0303)
RC4WD Dirty Life MB 1.9" Beadlock Wheels (Z-W0306)
OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0308)
OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0309)
OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Black) (Z-W0310)
Six-Spoke 1.55" Internal Beadlock Wheels (Black) (VVV-C0806)
Six-Spoke 1.55" Single Internal Beadlock Wheel (Black) (VVV-C0807)
Six-Spoke 1.55" Internal Beadlock Wheels (Gold) (VVV-C0808)
Six-Spoke 1.55" Single Internal Beadlock Wheel (Gold) (VVV-C0809)
Dome Spoked 1.9" Classic Beadlock Wheels (VVV-C0810)
Vehement 1.9" Internal Beadlock Wheels (VVV-C0811)
Vehement 1.9" Single Internal Beadlock Wheel (VVV-C0812)
RC4WD ARB Intensity LED Light Set (Z-E0112)
RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)
RC4WD TUFF T21 1.9" Internal Beadlock Wheels (Z-W0307)
RC4WD Cali Off-Road Distorted 1.9" Beadlock Wheels (Z-W0295)
OEM XJ 1.9" Beadlock Wheels (Chrome) (VVV-C0849)
OEM XJ 1.9" Beadlock Wheels (Gunmetal) (VVV-C0850)
RC4WD Ridler 645 1.9" Internal Beadlock Wheels (Z-W0305)
RC4WD Walker Evans 501 Legend 1.7" Beadlock Wheels (Z-W0320)
RC4WD Walker Evans 501 Legend 1.55" Beadlock Wheels (Z-W0319)
RC4WD Walker Evans 501 Legend 1.9" Beadlock Wheels (Z-W0318)
RC4WD Raceline Monster Deep Dish 1.7" Beadlock Wheels (Z-W0304)
Rally 1.9" Beadlock Wheels (Gold) (Z-W0324)
Rock Tamer 1.9" Beadlock Wheels (Z-W0321)
RC4WD Enforcer 1.9" Beadlock Wheels (Red) (Z-W0323)
RC4WD Rogue 1.9" Beadlock Wheels (Z-W0314)
RC4WD Rogue 1.7" Beadlock Wheels (Z-W0315)
RC4WD Rogue 1.55" Beadlock Wheels (Z-W0317)
Compass M/T 1.55" Scale Tires (Z-T0186)
RC4WD Walker Evans 501 Legend 2.2" Beadlock Wheels (Z-W0322)
RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
RC4WD BFGoodrich All-Terrain K02 1.9" Scale Tires (Z-T0188)
RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9" Scale Tires (Z-T0187)

Upgraded Front / Rear Shock:
RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)
RC4WD King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)

Metal Rod End Upgrades:
M3 Bent Short Aluminum Rod Ends (Silver) (10) (Z-S1653)
M3 Bent Short Aluminum Rod Ends (Red) (10) (Z-S1655)
M3 Bent Short Aluminum Rod Ends (Blue) (10) (Z-S1657)
M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)

Items of Interest (not required for completion):
Grease and Lubrication (Z-S1199) (Z-S1197)
Double Sided Tape for ESC (Z-S0934)

Instruction Manual:
Click here to download.

Press Information:
Click here to download.

Additional Notes for Assembly:
Note for Axle Assembly (Download Here)
Note for Drive Shaft Pin Installation (Download Here)

Notes:
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.
