RC4WD – Trail Finder 2 RTR W/Chevrolet Blazer Body Set (Ltd Ed.)

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the TF2 RTR. Part scale truck, part adventurer, your TF2 RTR is ready for your mud kicking trail-loving lifestyle!

The TF2 RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 RTR. Performance of the TF2 is smooth with its TCI R4 Transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 RTR is truly a work of art in both appearance and performance.

Every TF2 RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck… The TF2 RTR.

Your adventure awaits….

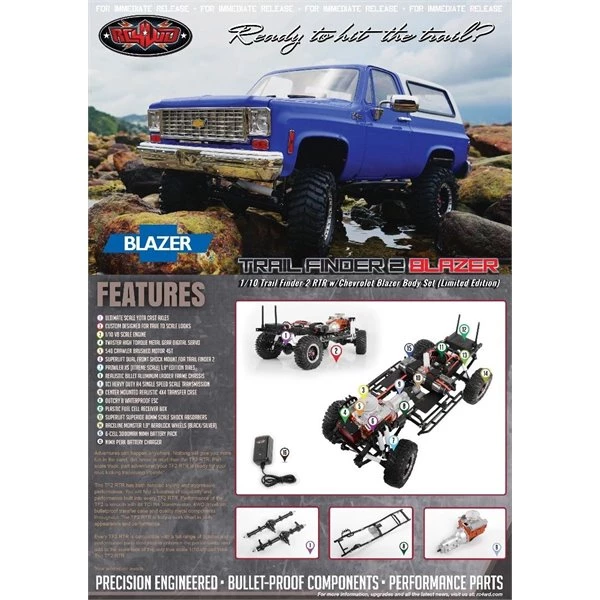

Ultimate Scale Yota Cast Axles

Custom Designed for True to Scale Looks

1/10 V8 Scale Engine

Twister High Torque Metal Gear Digital Servo

540 Crawler Brushed Motor 45T

Superlift Dual Front Shock Mount For Trail Finder 2

Prowler XS (XTREME SCALE) 1.9″ Edition Tires

Realistic Aluminum Ladder Frame Chassis

TCI Heavy Duty R4 Single Speed Scale Transmission

Center Mounted Realistic 4×4 Transfer Case

Outcry II Waterproof ESC

Plastic Fuel Cell Receiver Box

Superlift Superide 80MM Shock Absorbers

Raceline Monster 1.9″  Beadlocks Wheels (Black/Silver)

6-Cell 3000MAH NiMH Battery Pack

NiMH Peak Battery Charger

Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide .8 Mod Hardened Steel Gears

TCI Heavy Duty R4 Single Speed Scale Transmission

Output Shaft Length: 0.33in/8.5mm

Output Shaft OD: 0.19in/5mm

Gear Ratio: 10.1:1

Yota Cast Axles

Ratio: 15/40 = 2.67:1

Hex to Hex Width: 179mm/7.04″

TF2 Chassis

Features: Billet Aluminum Construction,

Adjustable Shock Hoops

Shock Absorbers

Superlift Superide 80mm-90mm Scale Shock Absorbers

Wheels

Type: RC4WD Raceline Monster 1.9″

Hub: 12mm Hex

Width: 27.5mm (1.08″)

OD: 48mm (1.9″)

Tires

Prowler XS 1.9″ Edition Tires

Outer Diameter: 95.5mm (3.76″)

Width: 36mm (1.41″ )

Inner Diameter: 48mm (1.9″ )

Truck Dimensions

Wheelbase: 290mm (11.41″)

Width: 224mm (8.82″)

Height: 218mm (8.58″)

Ground Clearance: 56mm (2.20″)

Final Drive Ratio: 31.9:1

Weight: 8.44Lbs/3.83Kg

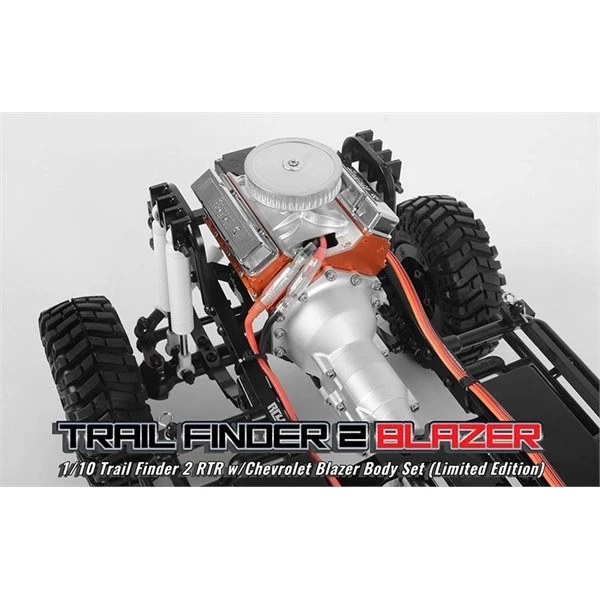

DRIVETRAIN

The TCI R4 Transmission is paired with our popular V8 Scale Engine and finished off with our 1/10 Holley® Chrome Valve Covers. With its durable, billet aluminum case and super smooth gears, The TF2 RTR will take you from point A to Z in no time! You may just want one in all your rigs!

The TF2 RTR includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the TF2 RTR Drivetrain has the most durable gears RC4WD has to offer so the TF2 RTR will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota Axles feature innovative round knuckles, lower mounting points and compact offset pumpkins.

The Driveshafts for the TF2 RTR are a design featuring heavy duty uni-joint metal shaft for great driveline angles and durability on the trail.

SUSPENSION

The TF2 RTR Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The TF2 RTR includes Superlift Superide 80mm-90mm Scale Shock Absorbers. These ultimate scale shock absorbers offer realistic looks and the ultimate in performance. They are machined from billet aluminum with internal springs and are rebuildable.

The TF2 RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts.

The TF2 RTR includes a set of RC4WD Raceline Monster 1.9″ Beadlock Wheels. These are machined from billet aluminum with a smooth black and silver finish. Each wheel face showcases the Raceline logo to add to the amazing details!

Every TF2 RTR needs a tough set or rock grabbing tires and the included Prowler XS (Xtreme Scale) 1.9″ Edition Tires deliver the perfect amount of traction with its advanced X3 soft compound. The scale details complete the look in just the right size.

DETAILS

The TF2 RTR features a professionally painted Chevrolet Blazer Hard Body Complete Set. The GM body has an awesome assortment of scale details including mirrors, door handles, vents and grill to match the 1:1 vehicle.

The unmistakable lines of a classic. The GM Body Set is an exact replica of the full scale vehicle. No other scale body comes this close to realism.

The GM Body Set comes in durable hard plastic and painted in the iconic Blue with a clean white roof. All the trim parts are separate pieces to get a great look, with minimal fuss.

The GM Body Set includes a dismountable roof. You can now change the style by mounting or dismounting the roof, adjusting to your own preference!

The crisp lines and bold details are all captured. Chrome plated parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with minimum modifications.

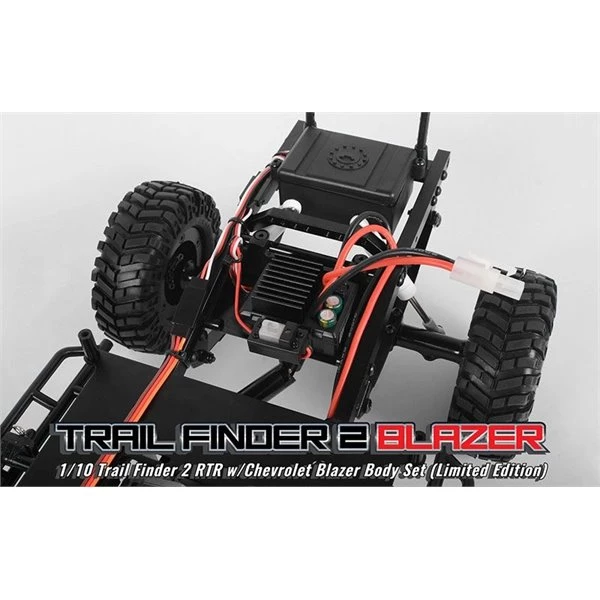

ELECTRONICS

The TF2 RTR includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!

The TF2 RTR is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going!

The TF2 RTR features the popular RC4WD Outcry II Waterproof ESC Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the TF2 RTR features the Twister. A high torque metal gear digital servo to handle all your steering duties.

It’s All in the box! Everything you need is provided to get you on the trails today!

What’s Included:

1x RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition)

Replacements Parts:

RC4WD Superlift Dual Front Shock Mount for Trail Finder 2 (Z-S0028)

RC4WD 1/8 Warn Scale Manual Locking Hubs (Z-S1224)

RC4WD Drive Flange Wheel Nut Cover (Z-S0756)

1.9″/2.2″ 6 Lug Steel Wheel Hex Hub +6 Offset (Z-S0779)

Prowler XS Scale 1.9″ Tires (Z-T0086)

RC4WD Raceline Monster 1.9″ Beadlock Wheels (Z-W0189)

XVD Axle for Ultimate Scale Yota TF2 Axle (Z-S0342)

RC4WD 1/10 V8 Scale Engine (Z-S1043)

RC4WD 1/10 Holley® Chrome Valve Covers For Scale V8 Engine (Z-S1500)

RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)

Trail Finder 2 V8 Engine Mounts (Z-S1239)

RC4WD Skid Plate For Trail Finder 2 V8/R4 (Z-S1488)

RC4WD Superlift Adjustable Steering Stabilizer (90mm-120mm) (Z-S0986)

RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)

RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)

Scale Steel Punisher Shaft (100mm-130mm/3.94″-5.12″) 5mm (Z-S0209)

Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)

Trail Finder 2 Chassis Set (Z-C0018)

Hammer Transfer Case (Z-U0024)

Yota Steering Links for Trail Finder 2 (Z-S0601)

Soft Leaf Springs for Trail Finder 2 (Z-S0518)

Fuel Cell Radio Box (Z-S0592)

Trail Finder 2 Plastic Body Posts (Z-B0029)

Leaf Spring Shackles & Mounts Kit (Z-S0047)

Electronics Top Plate w/Servo Mounts For Trail Finder 2 (Z-S0678)

M3 Mini Plastic Rod End (Z-S0398)

M3 Offset Short Plastic Rod End (Z-S0401)

The Ultimate Scale 1.9″ Yota Cast Axles (Front) (Z-A0058)

The Ultimate Scale Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)

The Ultimate Scale 1.9″ Yota Cast Straight Rear Axles (Z-A0061)

Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)

RC4WD 540 Crawler Brushed Motor (45T) (Z-E0004)

Twister High Torque Metal Gear Digital Servo (Z-E0035)

Outcry II Waterproof ESC (Z-E0089)

RC4WD XR3 3-Channel 2.4Ghz Transmitter & Receiver Radio (Z-R0009)

RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)

RC4WD Chevrolet Blazer Chrome Grill and Bumper Parts Tree (Z-B0094)

RC4WD Chevrolet Blazer Clear Lenses Parts Tree (Z-B0096)

RC4WD Chevrolet Blazer Hood and Tailgate Parts Tree (Z-B0098)

RC4WD Chevrolet Blazer Seats, Steering Column Parts Tree (Z-B0100)

RC4WD Chevrolet Blazer Interior Panels Parts Tree (Z-B0102)

RC4WD Chevrolet Blazer Chrome Handles and LED Holder Parts Tree (Z-B0104)

RC4WD Chevrolet Blazer Chrome Mirror and Rear Taillight Parts Assembly (Z-B0106)

RC4WD Chevrolet Blazer Accessory Parts Tree (Z-B0108)

RC4WD Chevrolet Blazer Topper Clear Window Parts Tree (Z-B0110)

RC4WD Chevrolet Blazer Body Mounting Parts Tree (Z-B0112)

RC4WD Chevrolet Blazer Main Cab Clear Window Parts Tree (Z-B0114)

RC4WD Chevrolet Blazer Main Body (Z-B0116)

RC4WD Chevrolet Blazer Topper (Z-B0118)

RC4WD Chevrolet Blazer Functional Hood and Tailgate Hardware (Z-S1564)

RC4WD Chevrolet Blazer Metal Emblem Set (Z-S1560)

RC4WD Magnet and Metal Mounts (Z-S1562)

RC4WD 6-Cell 3000mAh NiMH Battery Pack (Z-E0090)

RC4WD NiMH Peak Battery Charger (Z-E0092)

RC4WD AA Batteries (Z-S1718)

Large Warn Scale Locking Hub Installation Tool (Z-S1226)

RC4WD Drive Flange Hub Tool (Z-S0757)

Replacement Hardware:

Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)

Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)

Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)

Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)

Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)

Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)

Socket Head Cap Screws M3 X 28mm (10) (Z-S0711)

Steel Flat Head Socket Cap Screw M3 x 6mm (10) (Z-S0648)

Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)

M3 Driveshaft Screw Pin (5) (Z-S0804)

Leaf Spring Shoulder Screws (Black) (Z-S0275)

2mm Black Spacer with M3 Hole (10) (Z-S0600)

3mm Black Spacer with M3 Hole (10) (Z-S0806)

5mm Black Spacer with M3 Hole (10) (Z-S0821)

Optional Parts:

Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)

Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)

D35 Scale Front and Rear Axle Set (Black) (Z-A0090)

K44 Ultimate Scale Cast Front Axle (Z-A0101)

K44 Ultimate Scale Cast Rear Axle (Z-A0096)

K44 Ultimate Scale Front Axle (Z-A0048)

K44 Ultimate Scale Rear Axle (Z-A0049)

RC4WD Ballistic Fabrications Custom Axle Set (Z-A0094)

RC4WD Portal Front Axles for Yota Axles (First Gen) (Z-A0098)

Rear Replacement Case Housing for Cast Yota Axle (Z-A0079)

Front Replacement Case Housing for Cast Yota Axle (Z-A0078)

Twister Ultimate High Performance Waterproof Servo (Z-E0063)

Outcry Crawler Single Motor Electronic Speed Controller (ESC) (Z-E0007)

RC4WD 1/10 Baja Designs S8 LED Light Bar (120mm) (Z-E0076)

RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)

540 Crawler Brushed Motor 20T (Z-E0065)

540 Crawler Brushed Motor 27T (Z-E0067)

RC4WD 540 Crawler Brushed Motor (35T) (Z-E0005)

RC4WD 540 Crawler Brushed Motor (55T) (Z-E0003)

RC4WD 540 Crawler Brushed Motor (65T) (Z-E0002)

RC4WD 540 Crawler Brushed Motor (80T) (Z-E0001)

LED Light Set for Blazer Body Set (Z-E0084)

RC4WD XR4 4-Channel 2.4Ghz Transmitter & Receiver Radio (Z-R0006)

4-Channel XR4 2.4Ghz Blue Receiver (Z-R0008)

Helical Gear Set for 1/10 Yota Axle (Z-G0059)

Replacement Cast Knuckles for Yota Axle (Z-S0636)

Replacement Hardware for Front Yota Axle (Z-S0659)

Distributor and Rubber Tube for V8 Motor (Z-S1738)

RC4WD 1/10 Holley® M/T Valve Covers for Scale V8 Motor (Z-S1748)

RC4WD “Holley®” V8 Air Cleaner (Z-S1662)

RC4WD Radiator and Hose for V8 Motor (Z-S1773)

RC4WD Pulley Kit w/Belt for V8 Scale Engine (Z-S1537)

RC4WD V8 Engine Cover with Metal Intake Set for R3 Transmission (Z-S1749)

RC4WD Water Pump for V8 Scale Engine (Z-S1719)

Thermostat Housing for V8 Motor (Z-S1739)

80mm Ultimate Scale Shocks Internal Spring Assortment (Z-S1347)

Internal Springs for ARB and Superlift 80mm Shocks (Z-S1179)

RC4WD Steel Punisher Shaft II (Z-S0522)

Scale Steel Punisher Shaft V3 (90.5mm-110.5mm/3.56″-4.35″) 5mm Hole (Z-S0826)

RC4WD Aluminum Rear Bumper for the Chevy Blazer Body (Z-S1762)

RC4WD Aluminum Front Bumper for the Chevy Blazer Body (Z-S1731)

Heavy Duty Metal Servo Arm for Futaba Type Servo (Black) (Z-S0182)

Heavy Duty Metal Servo Arm for Futaba Type Servo (Z-S0130)

Adjustable Heavy Duty Metal Servo Arm for Futaba Type Servo (Z-S0216)

RC4WD Lightforce 140 Lance Light Bar Kit (Z-S0950)

RC4WD Metal Hydraulic Jack (Z-S1472)

RC4WD 1/10 Hi-Lift Jack (Z-S1526)

Tough Armor Roll Cage For Chevy Blazer (Z-S1708)

Front Inner Fender Set for Chevy Blazer (Z-S1729)

Chubby 6 TON Scale Jack Stands (Z-S0588)

Chubby Mini 3 TON Scale Jack Stands (Z-S0731)

RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)

The Ultimate Scale Shocks 80mm (Silver) (Z-D0005)

Scale Garage Series V8 Engine Stand (Z-X0029)

RC4WD Chevrolet Blazer Decal Sheet Set for Chevy Blazer Body (Z-B0123)

RC4WD Push Bar for RC4WD Chevy K5 Front Bumper (Z-X0036)

Mega Truck Universal Shaft “Ver 2″ (92mm-130mm/3.62″-5.12”) (VVV-S0054)

Roll Bar Rack w/Spare Mount for RC4WD Chevy Blazer Body (Red) (VVV-C0356)

Roll Bar Rack for RC4WD Chevy Blazer Body (Red) (VVV-C0354)

Roof Rack, Rollbar, Light Bar Combo for RC4WD Chevy Blazer Body (Red) (VVV-C0358)

Roof Rack, Rollbar, Light Bar Combo for RC4WD Chevy Blazer Body (Black) (VVV-C0357)

Roll Bar Rack w/Spare Mount for RC4WD Chevy Blazer Body (Black) (VVV-C0355)

Roll Bar Rack for RC4WD Chevy Blazer Body (Black) (VVV-C0353)

Dirt Grabber 1.9″ All Terrain Truck Tires (Z-T0005)

Rock Creepers 1.9″ Scale Off-Road Tires (Z-T0049)

Scale 4×4 1.9″ Mud Slingers Tires (Z-T0050)

Mud Thrashers 1.9″ Scale Tires (Z-T0051)

Rock Crusher X/T (Xtreme Terrain) 1.55″ Off-Road Tires (Z-T0053)

RC4WD Mickey Thompson 1.55″ Baja MTZ P3 Scale Tires (Z-T0058)

Sand Thrasher Rear 1.9″ Tires (Z-T0076)

Mud Thrashers 1.55″ Off-Road Tires (Z-T0100)

RC4WD Dick Cepek FC-II 1.9″ Tire (Z-T0119)

RC4WD Dick Cepek Fun Country 1.55″ Scale Tires (Z-T0124)

RC4WD Dick Cepek Trail Country 1.7″ Scale Tires (Z-T0132)

RC4WD Goodyear Wrangler Duratrac 1.9″ Scale Tires (Z-T0150)

Scrambler Offroad 1.55″ Scale Tires (Z-T0152)

RC4WD Atturo Trail Blade X/ T1.9″ Scale Tires (Z-T0154)

5 Lug Wagon 1.9″ Steel Stamped Beadlock Wheels (Chrome) (Z-W0001)

6 Lug Wagon 1.9″ Steel Stamped Beadlock Wheels (Chrome) (Z-W0002)

RC4WD Mickey Thompson Classic Lock 1.9″ Internal Beadlock Wheel (Z-W0007)

RC4WD Mickey Thompson Classic Lock 1.7″ Internal Beadlock Wheel (Z-W0022)

 RC4WD Dick Cepek Gun Metal 7 1.9″ Internal Beadlock Wheels (Z-W0027)

Stamped Steel 1.55″ Beadlock Wheels (Black) (Z-W0036)

RC4WD Dick Cepek Torque 1.9″ Internal Beadlock Wheels (Z-W0060)

Pro10 1.9″ Steel Stamped Beadlock Wheel (Silver) (Z-W0073)

Pro10 1.9″ Steel Stamped Beadlock Wheel (Black) (Z-W0074)

1.9″ Landies Internal Beadlock Wheels (Z-W0075)

1.55″ Landies Vintage Stamped Steel Internal Beadlock Wheels (Z-W0076)

RC4WD Dick Cepek DC-2 1.9″ Internal Beadlock Wheels (Z-W0080)

1.9″ Vintage Cruiser Stamped Steel Beadlock Wheels (Z-W0082)

Humvee 1.9″ Scale Beadlock Wheel (Z-W0119)

RC4WD Delrin Roof Rack (Z-X0044)

RC4WD Hawkeye 1.9” Scale Tire (Z-T0162)

RC4WD Interco IROK ND 1.55″ Scale Tires (Z-T0163)

Interior for 1/18 Mini D90 (Z-B0166)

Trail Finder 2 Rear Leaf Spring Reverse Mount (Z-S0415)

Instruction Manual:

Click here to download

Press Information:

Click here to download

Items of Interest: (not required for completion)

Grease and Lubrication (Z-S1199) (Z-S1197)

Double Sided Tape for ESC (Z-S0935) (Z-S0934)

Notes:

While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Steps marked with an asterisk (*) require thread lock.

Use thread lock sparingly.

In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Do not over tighten screws, otherwise you may strip the thread.
