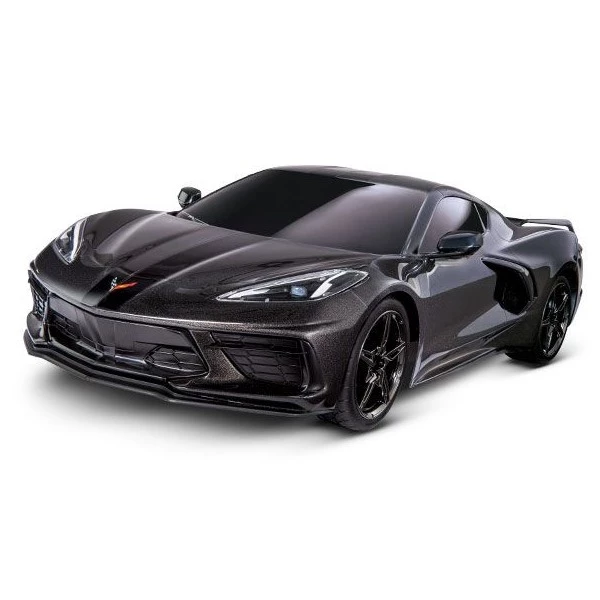

Traxxas – Chevrolet Corvette Stingray: 1/10 AWD Supercar – Black

The name synonymous with American sports car excellence: Corvette. Traxxas delivers the spirit and excitement of the all-new mid-engine Corvette in exacting scale detail on the new, larger 4-Tec 3.0 chassis. The new Traxxas 4-Tec 3.0 puts supercar performance in your hands with a new long-wheelbase, wide-track design. The faceted, Corvette Stingray body and its massive side intakes are duplicated to the millimeter. The simulated LT2 V8 is visible beneath the rear hatch. Authentic black-chrome wheels fill the fenders. Beautiful to display – with Traxxas performance that demands you to drive

INNOVATION

The Traxxas 4-Tec 3.0 AWD Chassis is the perfect complement to the Corvette Stingray. Insightful design touches and precision engineering, combined with a low-CG, mid-motor configuration and fully adjustable suspension, make the Traxxas Stingray as exciting and capable as the real thing.

DETAILS

Look beneath the Corvette Stingray's exotic lines to reveal the individual design details that make the 4-Tec 3.0 chassis so rewarding. Traxxas examined every detail in order to create a dynamic, high-tech vehicle that's as easy to operate as it is exciting to drive.

Car Specifications
Length: 19.4 inches (492mm)
Front Track: 8.1 inches (204mm)
Rear Track: 8.0 inches (202mm)
Total Width (mirrors): 8.9 inches (227mm)
Ground Clearance: 0.3 inches (9mm)
Weight: 3.92lbs (1.78kg) with body (no battery)
Height (ride): 5.1 inches (130mm)
Wheelbase: 11.3 inches (288mm)
Shock Length Short (front and rear)
Tire Diameter: 2.8 inches (73mm)
Tire Width (front): 1.1 inches (28mm)
Tire Width (rear): 1.3 inches (32mm)
Wheel Diameter: 2.1 inches (54mm)
Speed Control: XL-5 Electronic Speed Control
Motor (electric): Titan 12T 550 (12-Turn)
Transmission: Single Speed Direct Drive
Overall Drive Ratio: 11.38
Differential Type: Sealed, Hardened Steel Bevel, Limited Slip
Gear Pitch: 48
Chassis Structure/Material: Molded Tub / Nylon Composite
Brake Type: Electronic
Drive System Shaft-Driven 4WD
Steering: Dual-Bellcrank
Radio System: TQ 2.4GHz Transmitter
Servo: #2075 High Torque Waterproof
Top Speed: 30+mph (with included optional pinion gear)
Skill Level: 1
Battery Tray: 158mm long / 46mm wide / 23 or 26mm high
Officially Licensed Corvette Stingray Body
Clipless body eliminates body post holes
Highly-detailed replica engine bay
Injection molded details
Front grilles, rear diffuser, side intakes, side mirrors, and spoiler
LED-Ready front and rear lenses
Replica black chrome wheels with lug nut detail
Replica brake discs with red calipers
Clipless Body Mounts
Easy removal of the body
Front bumper/splitter incorporates the front body mount
Rear window assembly disguises the rear body mount
High-Performance Waterproof XL-5 Electronic Speed Control
Innovative waterproof design
Three drive profiles
Sport Mode – forward / brake / reverse
Race Mode – forward / brake
Training Mode – 50% forward / brake / 50% reverse (patented)
Traxxas EZ-Set one-button setup
LiPo and NiMH compatible with two-stage low-voltage
TQ 2.4GHz Radio System
Traxxas #6519 3-channel micro receiver
Patented O-ring sealed watertight receiver box keeps the micro receiver dry
Motor
Powerful Titan 12T 550 modified motor with internal cooling fan
Fixed gear mesh motor plate makes setting gear mesh simple with 11 different gearing positions
30+mph with included optional pinion gear
Molded wire retainer keeps motor wires secure
Steering
High-torque waterproof Traxxas #2075 steering servo
Precise servo saver integrated into servo horn
High steering angle option
Low Center of Gravity (Low CG) Chassis
Positions weight low for improved handling
Smooth underside resists drag and snags
Angled front bumper improves approach angle
Modular interlocking chassis pieces
Improves rigidity and tightens tolerances
Allows for easy maintenance
High Performance Suspension
Captured links won't pop off
Geometry tuned for precise handling
Dual rear camber link mounts
Adjustable droop
Adjustable Battery Hold Down
Easy, secure battery installation
Swivels to allow different height batteries
Locks securely without pins or parts to lose
Efficient Direct All-Wheel Drive
Full-time shaft driven 4-wheel drive
Steel center driveshaft with center bearing support
Direct drive
Sealed, silicone-filled differential
Brushless ready for easy Velineon brushless power upgrade
Wheels and Tires
Replica Corvette Stingray black chrome wheels
High-performance tires with long-wearing compound
Wider rear tires for a more aggressive stance
Replica brake discs incorporate standard 12mm wheel hexes
Brake calipers can be mounted in forward or trailing edge positions
Springs and Shocks
Fully adjustable oil-filled Ultra Shocks with X-ring technology
Red powder coated shock springs feature a responsive spring rate
Rubber-Sealed Ball Bearings
Requires Traxxas 7-Cell NiMH "flat pack" or 2-Cell LiPo Battery and Charger (Sold Separately)
Backed by Unparalleled Traxxas Support and Parts Availability
What's Included:

Traxxas Corvette Stingray, Ready-To-Race Model with Titan 12T 550 Motor
XL-5 Waterproof Electronic Speed Control
TQ 2.4GHz Radio System
Quick Start Guide
High Quality Maintenance Tools
Optional High Speed Pinion Gear
What's Needed:

Battery Pack
Corvette Stingray requires the use of a 7-Cell NiMH "flat pack" or 2-Cell LiPo Battery equipped with a Traxxas High Current Connector.
Charger
Traxxas EZ-Peak Plus (model #2970) recommended.
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
