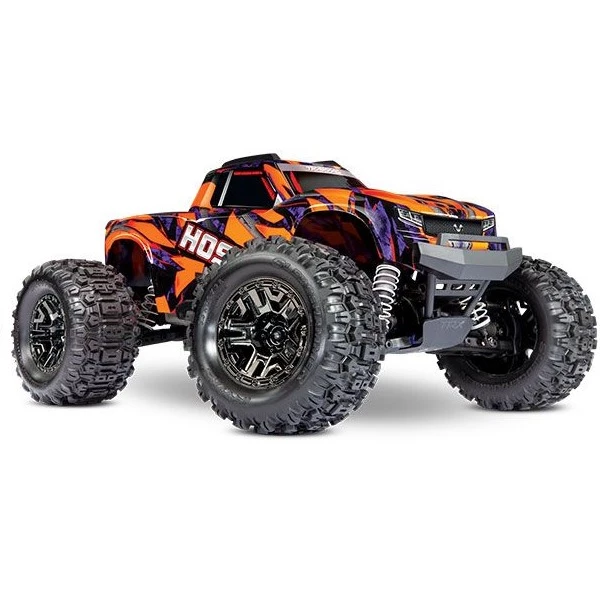

Traxxas – Hoss 4X4 VXL – Orange/Purple 1/10 Scale 4WD Brushless

The all-new Hoss 4X4 VXL unleashes extreme monster truck fun with the speed and style only Traxxas can deliver. Grab a fistful of throttle and the Velineon 540XL motor delivers massive torque to wheelie on command and hold the front end high as long as you dare. Pitch the Hoss into a turn and slide through sideways in a cloud of dirt—all four tires dig in and drive hard no matter how rough the terrain, and the Traxxas Stability Management system keeps you in control. The rugged, reinforced pickup body covers proven performance tech, with Velineon brushless horsepower and heavy-duty shaft-driven 4WD. The Hoss delivers unmatched versatility as the aggressive Sledgehammer™ tires blast through dirt, sand, mud, and snow. Drive harder, go faster, hang tougher—legendary Traxxas durability is engineered into every component. Nothing stops the Hoss!

Model 90076-4: Hoss 4X4 VXL: 1/10 Scale 4X4 Monster Truck, fully-assembled, waterproof electronics, Ready-To-Race®, with TQi™ 2.4GHz 2-channel radio system, Traxxas Stability Management®, VXL-3s speed control, 540XL brushless motor, and clipless painted ProGraphix® body. Requires: battery and charger.

540XL TORQUE

For those who believe “there’s no replacement for displacement,” Traxxas has built a monster truck for you. The new Hoss 4X4 VXL packs the same Velineon 540XL brushless motor found in the Maxx extreme monster truck. It’s the largest motor we’ve ever offered in a truck this size. The Velineon VXL-3s speed control rolls out the power smoothly utilizing large 6.5 mm connectors and an integrated cooling fan for fast, reliable fun.

EXTREME SLEDGEHAMMER GRIP

The Hoss VXL 4X4 relies on huge Sledgehammer tires to put its massive torque to the ground. The 5.3-inch tall Sledgehammers lift the Hoss skyward for superior ground clearance and a menacing stance. The open-block tread design clears away mud and debris for unrivaled traction on loose surfaces. Sledgehammer tires come pre-glued with performance foam inserts and they’re TSM-rated for speeds of 60mph and beyond!

ROCK-SOLID DRIVETRAIN

A conventional 4-wheel drive system may work for your average RC truck, but the average isn’t in the Traxxas vocabulary. We pored over every inch of the Hoss’ drivetrain, strengthening critical areas to handle the 540XL’s immense power. A Torque-Biasing Center Drive outfitted with a steel spur gear replaces a traditional slipper clutch along with a tough aluminum center driveshaft and beefed-up extreme-duty axles. The resulting Hoss drivetrain is a model of both efficiency and brute strength.

INNOVATION

Traxxas uses technology and innovation to deliver a fun and exciting RC experience with more power, speed, and convenience than you ever thought possible.

SELF-RIGHTING

Hoss 4X4 VXL uses Traxxas’ patented Self-Righting feature to keep the fun going, even when you get carried away with the wheelies or land upside down. Simply press a button on the TQi™ transmitter and, in most circumstances,* Hoss 4X4 VXL will be back on its wheels in just seconds and ready for more action! *3s LiPo battery required.

CLIPLESS BODY

The Hoss 4X4 VXL’s rugged and innovative clipless body latching system delivers secure mounting and easy one-handed removal. Battery changes are fast and there are no body clips to keep up with. The internal body cage with an integrated roof skid and tailgate protector strengthens the body for extra-long life.

BODY REINFORCEMENTS

A tough internal cage structure supports the body, and outer reinforcements enhance the aggressive look. Roof and tailgate skids protect against wear-through from skidding, while reinforcements at the mounts prevent tear-through.

DETAILS

Our engineers evaluated every detail on the Hoss 4X4 VXL in order to build a truck strong enough to withstand the most punishing drivers on the toughest terrain.

Reinforced Front and Rear Bumpers

Tough reinforced bumpers protect the chassis against impacts. The specially designed front bumper provides a high approach angle that allows the Hoss to climb up and over obstacles with ease. The rear bumper mounts a perfectly positioned wheelie bar to help prevent the Hoss 4X4 VXL from back-flipping under its explosive power.

Truck Specs

Length: 20.24 inches (514mm)
Width: 13.10 inches (333mm)
Ground Clearance: 2.75 inches (70mm)
Weight: 6.3lbs (2.9kgs) without batteries
Height: 8.34 inches (212mm)
Wheelbase: 11.62 inches (295mm)
Front Shock Length: Long
Rear Shock Length: XX-Long
Tires (pre-glued): 5.3 inches (133mm) Tall Sledgehammer™
Wheels: 2.8 inches (71mm) Black Chrome
Speed Control: VXL-3s™
Motor (electric): Velineon® 540XL Brushless
Transmission: Single-speed with Torque-Biasing Center Drive
Overall Drive Ratio: 10.99:1
Differentials: Sealed, 2-gear
Chassis Structure / Material: Modular composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Dual bellcrank with integrated servo saver
Radio System: TQi™ 2.4GHz 2-ch transmitter with #6533 TSM receiver
Servo: Waterproof #2075
Top Speed (optional gearing): 60+ mph with 3-cell LiPo and 23/50 gearing
Skill Level: 1
Battery Compartment: 162mm x 50mm x 26mm*35mm with optional battery strap (included)
Motor Specs

Type: Velineon 540XL 2400kV sensorless brushless
Weight: 11.18oz (317g)
Length: 3.58 inches (91mm)
Diameter: 1.41 inches (36mm)
Connector Type: Traxxas 6.5mm bullet connectors
ESC Specs

Input Voltage (cells): 7.2V (6–9 cells NiMH), 2S–3S LiPo
Case Size: 2.19” (56mm) x 1.54” (39mm) x 1.65” (45mm)
Weight: 3.84oz (109g)
BEC Voltage: 6.0 V
Reverse Delay: Yes, with lockout
Thermal Protection: Two-stage thermal shutdown
Ports: Auxiliary fan
Features List

VXL-3s™ Waterproof Electronic Speed Control
Cooling fan with large heat sink
Three Programmable Drive Profiles:
Sport Mode – Forward / Brake / Reverse
Race Mode – Forward / Brake
Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
Traxxas EZ-Set® one-button setup
Built-in two-stage low-voltage detection for LiPo batteries
NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
Velineon® 540XL Brushless Motor
Long-format brushless motor
4-pole 2400 kV
5mm output shaft
Precision-balanced rotor
Brilliant blue-anodized finish
Up to 60+ mph with 3S LiPo battery
Traxxas Stability Management® (TSM)
Improves straight-line acceleration and braking on low-traction surfaces
Maintains steering composure to allow throttle-on powerslides
Never dulls throttle or slows the truck
Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4GHz High Output Radio System
TQi 2-channel transmitter
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
Programmable multi-function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
5-channel micro receiver (#6533) with fail-safe security
Patented waterproof receiver box with easy-access plug
Clipless ProGraphix® Body
Easy one-handed removal
Reinforced inner cage
Strong oversized latch
Rugged roof rollover protector
Tailgate protector
Chassis
Modular composite tub design
Secure battery hold-down latch
Reinforced integrated wheelie bar
High-approach bumpers
Integrated nerf bars for side impact resistance
Suspension
Adjustable 4mm steel toe and camber links
New impact-resistant suspension arm composite
Oil-filled Ultra Shocks
Rugged front and rear shock towers
White powder-coated springs
Steering
Chassis-mounted #2075 servo
Dual bellcrank design with integrated servo saver
Drivetrain
Full-time shaft-driven 4-wheel drive
Torque-Biasing Center Drive™ absorbs shocks and distributes power evenly
Extreme heavy-duty driveshafts
Oil-filled steel gear front and rear differentials
Large 32-pitch steel spur gear
Anodized-aluminum center driveshaft
Wheels and Tires
Large 2.8” black chrome wheels
Tall 5.3” Sledgehammer™ tires
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating
What’s In The Box:
Hoss 4X4 VXL with Velineon® VXL-3s and 540XL
Quick Start Guide
TQi™ 2.4GHz radio system
High-quality maintenance tools
What You’ll Need:
Batteries
Hoss 4X4 VXL requires a single NiMH or LiPo battery. See full list of batteries

Charger
Traxxas EZ-Peak Live charger (#2971) is recommended for easy and fast charging performance

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
