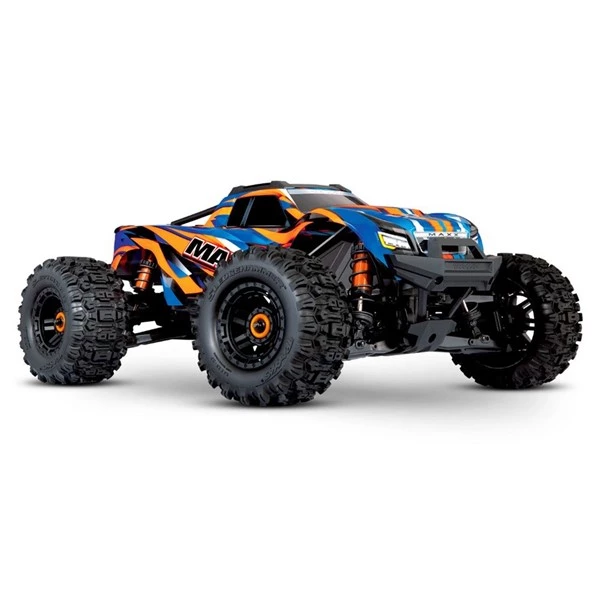

Traxxas – Maxx 4S V2 Brushless Monster Truck W/ WideMaxx – Orange

MAXX 1/10 Scale MAXX Monster Truck

MEET THE NEW MAXX

The Traxxas X-Maxx forever changed the face of RC monster trucks. Its radical new design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. There is really nothing else like it… until now. Meet the all-new 1/10 Traxxas Maxx. Maxx expertly packages X-Maxx's innovative design elements into a lighter, more compact, more ferocious beast that is ready to take speed and strength to new levels of extreme intensity. Let the fun begin!

THE MAXX EXPERIENCE

Extreme power. Extreme durability. Extreme fun! This is the foundation that the Maxx Experience is built upon. With a new Maxx platform that is smaller and lighter, Traxxas engineers took the speed to 60+ mph, tuned it for even higher performance, and doubled-down on strength and durability. Maxx is once again reshaping monster truck fun and excitement.

60+ MPH MAXX MUSCLE

Traxxas Velineon brushless power hits hard with massive 4s punch and effortless wheelies on demand. Maxx feels like an unstoppable force of nature as top speeds reach an awe-inspiring 60+ mph. Advanced 32-bit microprocessor-control constantly monitors the output for efficient, long-running performance. The high-output 540XL motor features a beefy, 5mm shaft, aluminum heat sink, and a powerful fan. Of course it's all fully protected with Traxxas' innovative waterproofing.

TRAXXAS TOUGH

Maxx is engineered to withstand extreme punishment and intense driving action. Impact absorbing suspension arms soak up the hits with ease. The heavy-duty driveline components have been proven in vehicles larger and heavier than Maxx, so there is plenty of strength to spare. The Maxx chassis absorbs and dissipates impact energy across the entire structure. Huge threaded-aluminum GT-Maxx shocks with large diameter shafts manage suspension damping. Maxx invites you to explore new ways to drive hard and have fun!

INNOVATION

Traxxas engineering and innovation makes all the difference to separate the amazing from the ordinary.

DETAILS

Look anywhere on the Maxx truck and it becomes clear that no detail was overlooked to provide the best possible performance.

Vehicle Specs
Length: 21.60 inches (549mm)
Front Track: 14.50 inches (368mm)
Rear Track: 14.50 inches (368mm)
Ground Clearance: 1.92 inches (49mm)
Weight: 9.7 lbs (4.4kg)
Height (ride): 9.12 inches (232mm)
Wheelbase: 12.96 inches (329mm)
Shock Length: 4.89 inches (129.2mm)
Tire Diameter: 5.51 inches (140mm)
Wheels Diameter: 2.8 / 3.6 inches (71 / 91mm)
Speed Control: Velineon VXL-4s
Motor (electric): 540XL (2400 kV)
Transmission: Single-Speed
Overall Drive Ratio: 11.86 (24 / 50)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0
Chassis Structure/Material: Composite Modular Tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank
Radio System: TQi 2.4GHz Transmitter with TSM receiver
Servo: Torque: 285oz-in.
Top Speed: 60+ MPH with 4S LiPo battery and optional gearing (sold separately)
Skill Level: 4
Battery Tray: 162mm L x 45mm W x 43mm H
Required Batteries: 4 "AA" (transmitter)
Motor Specs
Type: 2400 kv sensorless brushless
Weight: 317g (11.18oz)
Length: 3.58 inches (91mm)
Diameter: 1.41 inches (36mm)
Connector Type: Traxxas 6.5mm bullet connectors
ESC Specs
Input Voltage: 3S-4S LiPo (11.1V – 16.8V)
Case Size: 2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm)
Weight: 201g (7.09oz)
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Motor Connectors: Traxxas 6.5mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10-gauge Maxx Cable
Ports: RX input, auxiliary fan, Traxxas accessory port
Features:

VXL-4s Waterproof Electronic Speed Control
3S-4S LiPo compatible
Built-in cooling fan
Real-time telemetry via Traxxas Link
Machined heat sinks
10-gauge silicone wire
Integrated protection circuits
LED status lights
Waterproof
Velineon 540XL Brushless Motor
Long format brushless motor
4-pole 2400 kV
5mm output shaft
Aluminum heat sink
Cooling fan
55+ MPH out of the box using single 4S LiPo battery (sold separately)
60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
Traxxas Stability Management
Helps prevents spinouts and loss of control
Adjusts from off to 100% assistance from the transmitter
TQi 2.4GHz High Output Radio System
TQi 2.4GHz transmitter
Traxxas Link enabled
TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models – just switch on and drive, "model selection" is not required
Multi-Function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle end points
High 13ms frame rate and near-zero latency for responsive control
Telemetry-ready 5-channel micro receiver
Clipless Body Mount System
Quick one-hand installation and removal
Uses pivoting rear latch mechanism
Eliminates body posts and clips
Reinforced for extra protection against tearing
Drivetrain
Full-time shaft-driven 4-wheel drive
Torque-Biasing Center Drive absorbs shocks and distributes power
17mm keyed wheel hex with 5mm nut
Sealed, silicone fluid-filled diffs with large module ring and pinion gears
Heavy-duty Cush Drive
Extreme-duty telescoping driveshafts
Splined aluminum center driveshaft
Secure Motor Mounting System
Precise, fixed gear mesh adjustments
Motor retention separate from gear mesh
Full-length motor cradle
New Modular Composite Chassis
Modular chassis design interlocks with front and rear bulkheads
Absorbs and distributes impact energy
Easy to service and access components
Driveline is sealed in the chassis to keep out dirt and grit
Easy Battery Access
Battery is protected deep in the chassis
Battery hold-downs pivot for easy access
More secure than conventional retention systems
Heavy-Duty Steering Bellcranks and Servo
Large-scale high-output steering servo
285oz-in of torque
0.18 sec transit speed
New mounting system to fully support case
Heavy-duty double-shear bellcranks
Suspension
Engineered to optimize suspension travel and steering angles
All critical suspension points have double shear strength
Steel pivot balls
C-hub and steering block geometry maximizes steering angle
Fixed, high-strength camber and toe links
Steel upper and lower tie barsFull contact sealed bearings used throughout driveline
New GT-Maxx Shocks
Machined aluminum threaded body
Extra-large bore and capacity
Large-diameter damper shaft
Lower seal cartridge with dual X-rings
Adjustable upper spring retainer
Plastic shock caps with pivot balls
Lower spring perches bolted on
Bumpers
Tough energy absorbing front and rear bumpers
Lower front and rear skids for impact and abrasion resistance
Integrated nerf bars for side impact resistance
Wheelie bar with integrated carry handle
Wheels/Tires
Tough 2.8" wheels with keyed 17mm hex receptor
Large 5.5" all-terrain dual-diameter tires
1-piece foam inserts
Pre-glued and ready for action
TSM rated
What's In The Box:

Maxx, Ready-To-Race model with Traxxas 540XL brushless motor
VXL-4s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi 2.4GHz radio system
High quality maintenance tools
What You'll Need:

LiPo Battery
Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
LiPo Balance Charger with iD
Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (TRA2971).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
