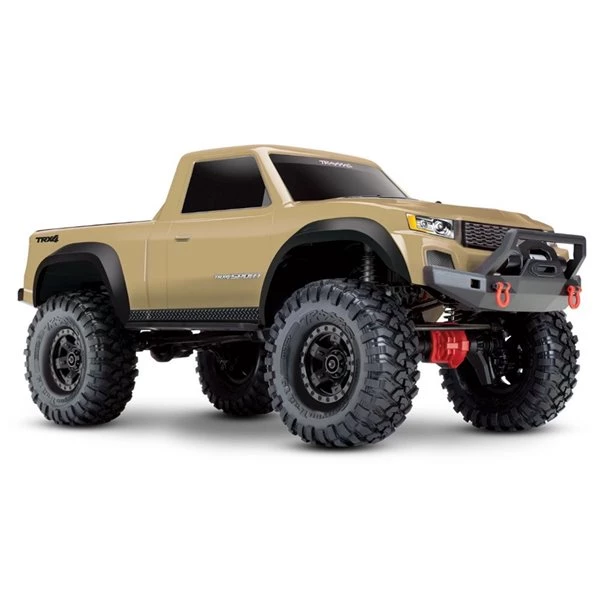

Traxxas – TRX-4 Sport 1/10 Scale 4X4 Trail Truck – Tan

The Traxxas TRX-4 Sport combines a lightweight pickup truck body, single speed transmission and a full time locked spools with the notorious Traxxas high clearance portal axles, sticky Canyon Trail tires, and great scale looks to create a leaner, performance-focused TRX-4. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility, and improved overall driving dynamics. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to the next level.

Features:
Chassis:
Heavy-Duty Steel Frame Rails
Adjustable Wheelbase
Molded Wire Retainers
Dual Battery Tray
Floor Pans
Aluminum Scale Shocks
Heavy-Duty Steel Links
Precision Hex Hardware
Driveline:
Portal Axles
Torque Twist Eliminated
Locked Differentials
Steel Gear Transmission
Hardened Steel U-Joints
Twin Friction Plate Slipper Clutch
Sealed Ball Bearings
Geometry:
Raised Center Driveshafts and Suspension Links
High Steering and Drag Links
45-Degree Steering Angle
Extreme Approach Angles
High Ground Clearance
Front Motor Design
Electronics:
XL-5 HV ESC
Titan 21T 550 Motor
Waterproof Metal Gear Servo
TQ™ 2-Channel Radio System
Specifications:
Length: 21.93 inches (557mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 5.79lb (2.63kg)
Height: 9.47 inches (241mm)
Wheelbase: 12.28 inches (312mm)
Approach Angle: 58.82°
Departure Angle: 45.83°
Breakover Angle: 58.93°
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Spool (no differential)
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
Receiver: 6519
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26mm H

Needed To Complete:

(4) "AA" Batteries (for transmitter)
(1) NiMH Battery (4-7 cell) or LiPo Battery (2S/3S)
(1) Compatible Battery Charger
